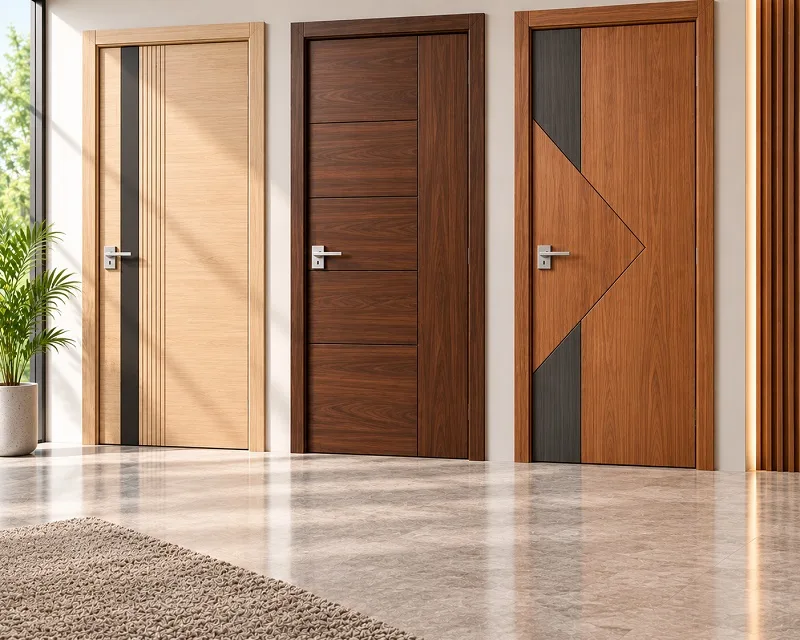

Membrane Door
Membrane Door are manufactured by using Designed Solid flush doors and HDF Moulded Doors that are over laid with imported Rigid PVC Membrane Film of different elegant shades and colors to enhance the beauty of doors.
These doors are resistant to shrinking, swelling, cracking and joint separation and hence are widely acclaimed among huge clientele.
Membrane doors are available in unique design with dimensional accuracy and a vast colour series that depict fresh trends of the market. We have the expertise in designing and developing unique membrane doors as per the requirement of the customers.
Radium Ply Conforms To IS:303
| TECHNICAL SPECIFICATION (IS:1659) | ||
|---|---|---|
| Test | Requirement of IS 2202 | Test Result |
| Dimensions & Squareness | Length-Width: +/-5 mm Thickness: +/-1 mm Squareness: 1mm at a length of 500mm |
Length-Width: +/-5 mm Thickness: +/-1 mm/-0.2 mm Squareness: 1mm at a length of 500mm |
| General Flatness | < 6.0 mm | < 4.0 mm |
| Local Planeness | < 0.5 mm | < 0.3 mm |
| Impact Indentation | < 0.2 mm | < 0.2 mm |
| Edge Loading Test | Max Deflection – < 5.0 mm Residual Deflection – < 0.5 mm Lateral Bucking – < 2.0 mm |
Max Deflection – < 3.0 mm Residual Deflection – < 0.3 mm Lateral Bucking – < 1.0 mm |
| Shock Resistance Test | Should with stand 5 impacts | Can with stand 15 impacts |
| Misuse Test | Pass | Excellent |
| End Immersion Test | No delamination in one cycle | Can undergo three cycles without any delamination |
| Knife/Glue Adhesion – Test | Pass | Excellent |
| Screw Withdrawal Resistance | > 1000 N | > 1500 N |
