Radium Ply
Film Face

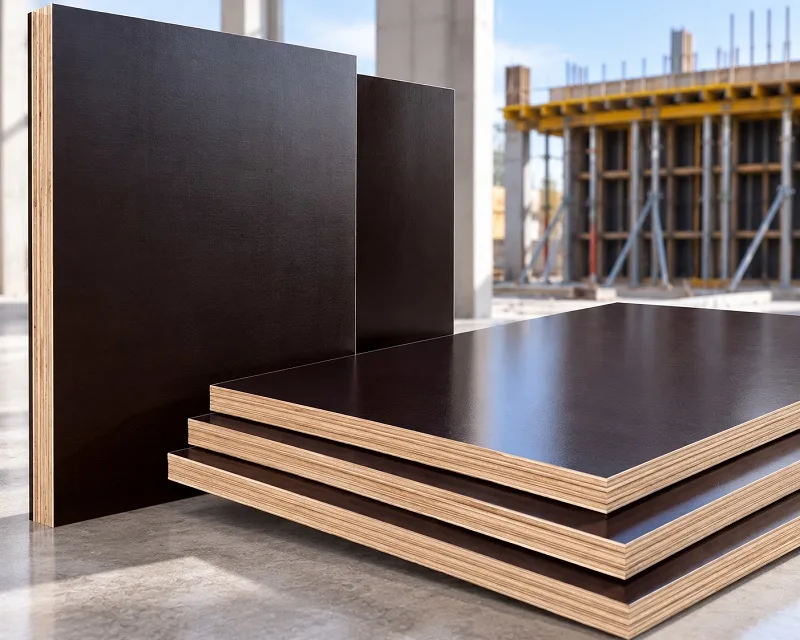

Radium Ply densified shuttering plywood is compact and toughened quality structural plywood. The technique used to manufacture this plywood is a unique ‘Heating – Cooling cycle’ process.
Through strict quality control checks, its excellent properties for critical applications are enhanced that matches to all kinds of high end uses. It does not degrade against wear and tear, warp less and are twist free. Its protective properties resist attack from termite, fungus, rot and other destructive elements.
This is the most elegant, durable, superior film faced densified shuttering ply. Its strength factor exceeds to withstand any amount of load of concrete and the vibration caused by pouring the concrete.
Radium Ply Conforms To IS:303
| TECHNICAL SPECIFICATION (IS:1659) | ||
|---|---|---|
| Test | Requirement of IS 2202 | Test Result |
| Dimensions & Squareness | Length-Width: +/-5 mm Thickness: +/-1 mm Squareness: 1mm at a length of 500mm |
Length-Width: +/-5 mm Thickness: +/-1 mm/-0.2 mm Squareness: 1mm at a length of 500mm |
| General Flatness | < 6.0 mm | < 4.0 mm |
| Local Planeness | < 0.5 mm | < 0.3 mm |
| Impact Indentation | < 0.2 mm | < 0.2 mm |
| Edge Loading Test | Max Deflection – < 5.0 mm Residual Deflection – < 0.5 mm Lateral Bucking – < 2.0 mm |
Max Deflection – < 3.0 mm Residual Deflection – < 0.3 mm Lateral Bucking – < 1.0 mm |
| Shock Resistance Test | Should with stand 5 impacts | Can with stand 15 impacts |
| Misuse Test | Pass | Excellent |
| End Immersion Test | No delamination in one cycle | Can undergo three cycles without any delamination |
| Knife/Glue Adhesion – Test | Pass | Excellent |
| Screw Withdrawal Resistance | > 1000 N | > 1500 N |
